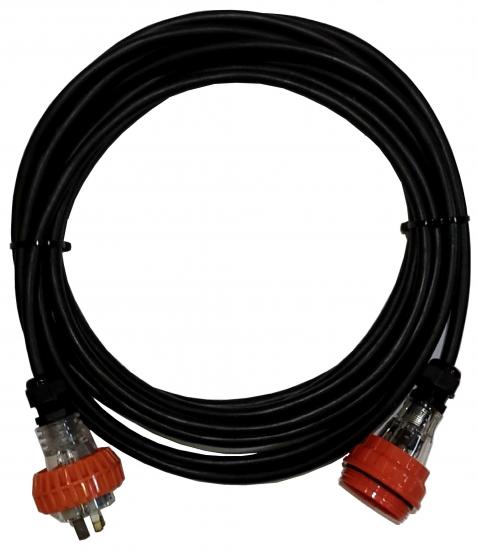

10 Amp 30m 3 Pin Heavy Duty 240V Ind Extension Lead. Cable:1.5mm²R

10 Amp Australian Standard Single Phase(240V)

Heavy Duty

Industrial Extension Lead

Length: 30m

The 10A 10m “heavy-duty” extension lead suits indoor, outdoor and harsh environments.

The maximum length for general use is 35m

The maximum length for use with any equipment that has a high starting current is 25m

Applications:

• Wet and oily environments
• Construction site leads
• Submersible Pumps
• Flexible connections to motors, generators, compressors, e.g.
  • Drills & pumps
  • Saws & log splitters
  • Cranes & Hoists
  • Handheld drills
  • Grinders & welders
  • Agricultural equipment
  •  Generators
• Event and temporary cabling, e.g.
  • fairgrounds
  • sporting venues
  • Stage & theatre power.

The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact are resistant to abrasion, exposure to radiated heat and chemical contamination. The black, flame-retardant rubber sheath suits hazardous locations like engineering workshops.

Maximum Ambient temperature: 40°C

Maximum Continuous Length:  35m

Maximum current at 40°C: 10A

Cable  Specifications:

Cable CSA:1.5mm²

Max Voltage: 06/1kV

Insulation: Ethylene-propylene rubber (EPR) R-EP-90   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Cable Temperature Range: -25 degrees C to +90 degrees C (mobile) -40 degrees c to +90 degrees C (fixed)

Maximum permissible short circuit temperature: 250 deg C for 1 Sec
