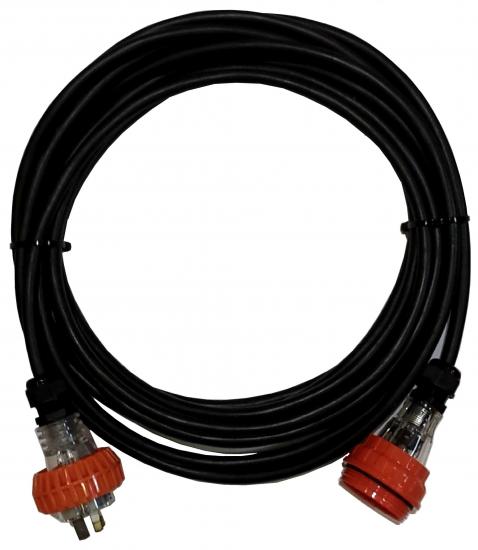

10 Amp 25m 3 Pin Heavy Duty 240V Ind Extension Lead. Cable:1.5mm²R

10 Amp Australian Standard Single Phase(240V)

Heavy Duty

Industrial Extension Lead

Length: 25m

Heavy Duty:

The “heavy duty” extension lead is suitable for indoor, outdoor and harsh environments.

The “heavy duty” extension lead has a larger diameter cable and longer maximum allowable
length from the outlet to the appliance than the “light duty” lead.

The maximum length for general use: 35m

The maximum length for use with any equipment that has a high starting current: 25m

Applications:

• Wet and oily environments
• Construction site leads
• Submersible Pumps
• Flexible connections to motors, generators, compressors e.g.
  • Drills & pumps
  • Saws & log splitters
  • Cranes & Hoists
  • Handheld drills
  • Grinders & welders
  • Agricultural equipment
  •  Generators
  • 3 phase Vacuums & floor grinders. etc

• Event and temporary cabling e.g.
  • fairgrounds
  • sporting venues
  • Stage & theatre power.

The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact they are resistant to abrasion, exposure to radiated heat and chemical contamination. Because of the black, flame retardant sheath, it is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.

This extension lead recommended for applications where the cord is continually dragged behind a machine, e.g., floor polishers, floor grinders, etc.

Maximum Ambient temperature: 40°C

Maximum Continuous Length:  35m

Maximum current at 40°C: 10A

Cable  Specifications:

Cable CSA:1.5mm²

Max Voltage: 06/1kV

Insulation: Ethylene-propylene rubber (EPR) R-EP-90   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)

Maximum permissible short circuit temperature: 250 deg C for 1 Sec
