  • 15 Amp 30m 240V Heavy Duty Ind Extension Lead.  CSA:2.5mm²R.

15 Amp 30m 240V Heavy Duty Ind Extension Lead. CSA:2.5mm²R.

13431 Views

  • $247.00

  • Ex Tax: $224.55

Available Options


Shipping Estimate

Country:
Region / State:
Post Code:

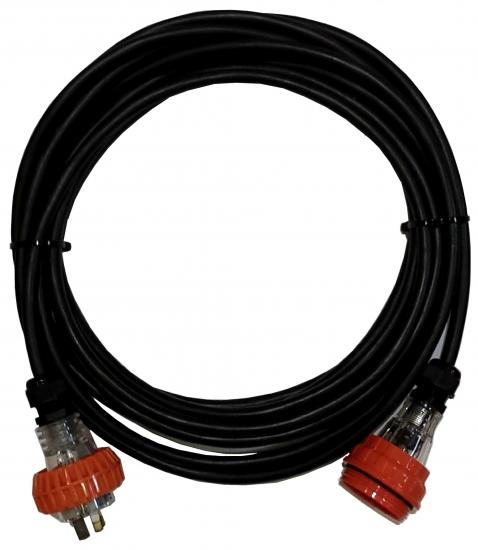

15 Amp Australian Standard

(240V) Single Phase

Heavy Duty

IP56 Rated Extension Lead

Length: 30m



Lead, with its black rubber-insulated flame-retardant sheath, is suitable for dry, damp, and wet environments, areas of stress caused by vibration or light impact, and hazardous locations like engineering workshops. The leads resist abrasion, exposure to radiated heat, and chemical contamination.

The lead is suitable for applications where the lead is dragged behind a machine, such as floor polishers and grinders.

The maximum length for general use is 40m

The maximum length for use with any equipment that has a high starting current is 20m

Applications:

  • Wet and oily environments
  • Construction site leads
  • Submersible Pumps
  • Flexible connections to motors, generators, compressors, e.g.
    • Drills & pumps
    • Saws & log splitters
    • Cranes & Hoists
    • Handheld drills
    • Grinders & welders
    • Agricultural equipment
    • Generators
    • Vacuums & floor grinders. etc
  • Event and temporary cabling, e.g.
    • fairgrounds
    • sporting venues
    • Stage & theatre power.

Cable  Specifications:

Cable CSA:2.5mm²

Maximum Ambient temperature: 40°C

Maximum Continuous Length:  40m

Maximum current at 40°C: 15A

Max Voltage: 06/1kV

Insulation: Ethelyne-propylene rubber (EPR) R-EP-90   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Cable Temperature Range: -25 degrees C to +90 degrees C (mobile) -40 degrees c to +90 degrees C (fixed)

Maximum permissible short circuit temperature: 250 deg C for 1 Sec
