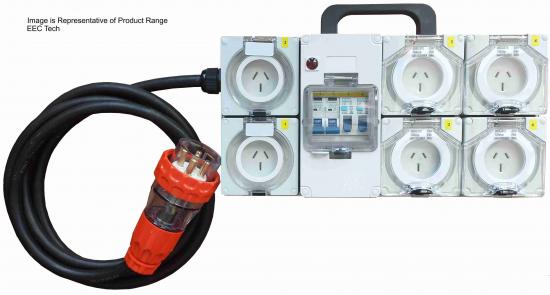

Industrial Power board - 20A 3 phase supply with 2x16A & 4x10A outlets.

Portable Industrial Power-Board

20 Amp 3 phase supply with 2x16A, 4x10A outlets.

The portable power distribution board is a compact durable IP56 rated portable power board.

The board is feed from a 20A 3 phase + Neutral and Earth supply. The 1.8m lead has a 5 pin 20A plug that will fit a five pin 20A socket.

The board has 15A sockets which will accept both 10A and 15A plugs, but the power board is limited to a maximum current rating of the circuit breakers.

The board is assembled in Australian to Australian Standards.

The boards comply with the new EnergySafe  Victoria RCBO requirements effective from the 1Jul18.

The board has four RCBO protected circuits.

Circuit 1: Current rating 16A with 1x16A flat pin socket outlet (Max: 3600W).

Circuit 2: Current rating 16A with 1x16A flat pin socket outlet (Max: 3600W).

Circuit 3: Current rating 10A with 2x16A flat pin socket outlets (Max: 2400W).

Circuit 4: Current rating 10A with 2x16A flat pin socket outlets (Max: 2400W).

Circuits 3 and 4 have 15A outlets with a maximum current rating of 10 Amps for each circuit.

The board is made using quality Australian standard components.

The boards comply with the new Victorian Energy safe RCBO requirements effective from the 1Jul18.

Product Information.

• 6 x 15 amp 240 volt IP66 socket outlets.
• 1 x 1.8 m HO7 rubber insulated lead with 32 Amp 5 Pin IP66 plug.
• 2 x 10 amp, one pole, RCBO.
• 2 x 16 amp, one pole, RCBO.

• 3 x 16amp, 1 pole,RCD/MCB combo
