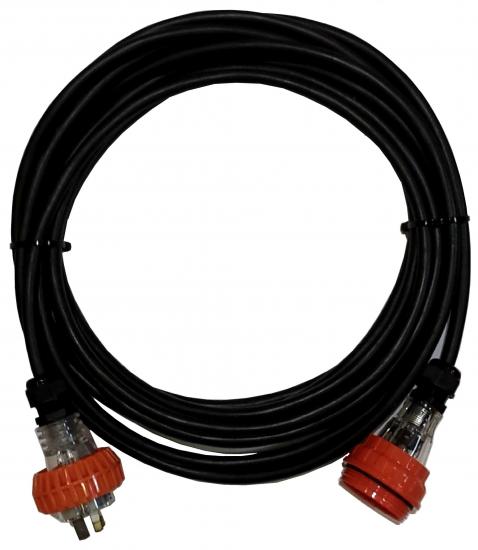

15 Amp 25m 240V Heavy Duty Ind Extension Lead. CSA:2.5mm²R.
- Brand: EEC Technical Services
- Product Code: 15 Amp 3 Pin Heavy Duty Industrial Extension Lead
- 6 Available
- Ex Tax: $176.36
15 Amp Australian Standard
Industrial Extension Lead
The “heavy duty” extension lead is suitable for indoor, outdoor and harsh environments.
The “heavy duty” extension lead has a larger diameter cable and longer maximum allowable
length from the outlet to the appliance than the “light duty” lead.
The maximum length for general use: 40m
The maximum length for use with any equipment that has a high starting current: 20m
- Wet and oily environments
- Construction site leads
- Submersible Pumps
- Flexible connections to motors, generators, compressors e.g.
- Drills & pumps
- Saws & log splitters
- Cranes & Hoists
- Handheld drills
- Grinders & welders
- Agricultural equipment
- 3 phase Vacuums & floor grinders. etc
- Event and temporary cabling e.g.
- sporting venues
- Stage & theatre power.
The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact they are resistant to abrasion, exposure to radiated heat and chemical contamination. Because of the black, flame retardant sheath, it is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.
It is that recommended for applications where the lead is continually dragged behind a machine, e.g., floor polishers, floor grinders, etc.
Maximum Ambient temperature: 40°C
Maximum Continuous Length: 40m
Maximum current at 40°C: 15A
Max Voltage: 06/1kV
Insulation: Ethelyne-propylene rubber (EPR) R-EP-90 90 deg C Conductor
Sheath Colour: Black - UV, sunlight and weather resistant.
Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)
Maximum permissible short circuit temperature: 250 deg C for 1 Sec
