  • 15 Amp 10m 240V Heavy Duty Ind Extension Lead. Cable:2.5mm²R.

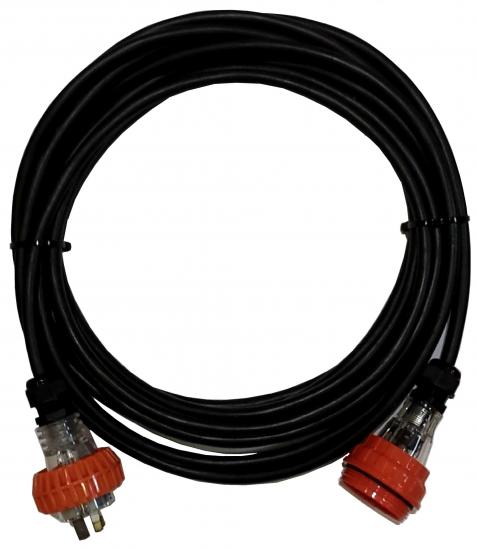

15 Amp 10m 240V Heavy Duty Ind Extension Lead. Cable:2.5mm²R.

41826 Views

  • $109.00

  • Ex Tax: $99.09

Available Options


Shipping Estimate

Country:
Region / State:
Post Code:

15 Amp Australian Standard

Single Phase(240V)

Heavy Duty

Industrial Extension Lead

Length: 10m



Heavy Duty:

The “heavy duty” extension lead is suitable for indoor, outdoor and harsh environments.

The “heavy duty” extension lead has a longer maximum allowable length from the outlet to the appliance than the “light duty” lead.



The maximum length for general use: 40m



The maximum length for use with any equipment that has a high starting current: 20m

Applications:

  • Wet and oily environments
  • Construction site leads
  • Submersible Pumps
  • Flexible connections to motors, generators, compressors e.g.
    • Drills & pumps
    • Saws & log splitters
    • Cranes & Hoists
    • Handheld drills
    • Grinders & welders
    • Agricultural equipment
    •  Generators
    • 3 phase Vacuums & floor grinders. etc
  • Event and temporary cabling e.g.
    • fairgrounds
    • sporting venues
    • Stage & theatre power.

Lead is suitable for dry, damp and wet environments. In areas of stress caused by vibration or impact. They are resistant to abrasion, exposure to radiated heat and chemical contamination.

The black flame retardant sheath is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.

It is that recommended for applications where the lead is continually dragged behind a machine, e.g., floor polishers, floor grinders, etc.

Maximum Ambient temperature: 40°C

Maximum Continuous Length:  40m

Maximum current at 40°C: 15A

Cable  Specifications:

Cable CSA:2.5mm²

Max Voltage: 06/1kV

Insulation: Ethelyne-propylene rubber (EPR) R-EP-90   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)

Maximum permissible short circuit temperature: 250 deg C for 1 Sec
