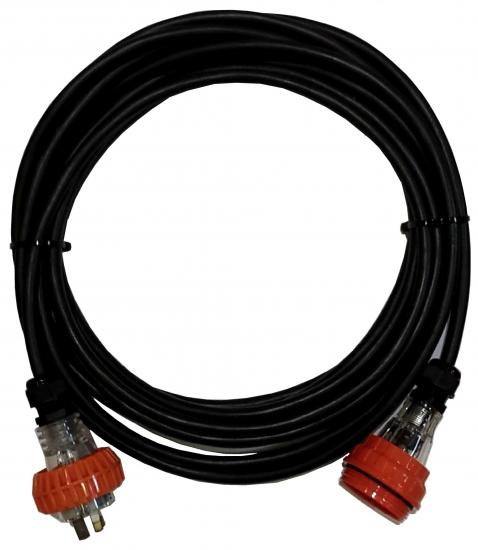

10 Amp 50m 3 Pin "Construction" Single Phase 240V Industrial Extension Lead. Cable CSA:4mm²R.
5198 Views
- Brand: EEC Technical Services
- MPN: EEC 3025
- 3 Available
-
$609.40
- Ex Tax: $554.00
Available Options
Shipping Estimate
10 Amp Australian Standard Single Phase(240V)
“Construction”
Industrial Extension Lead
Length: 50m
“Construction Leads”:
For indoor, outdoor and harsh environments.
The “construction” lead has a larger diameter cable and longer maximum allowable length
from the outlet to the appliance than “heavy duty” leads. It is suitable for use on sites that
have a few outlets; if the lead is connected to a temporary site power board a that is a long
distance from the local distribution board; where voltage drop is a consideration (either the
machine is a considerable distance from the main distribution board or has high starting
current)
The maximum length for general use: 100m
The maximum length for use with any equipment that has a high starting current: 60m
- Construction site leads
- Submersible Pumps
- Flexible connections to motors, generators, compressors e.g.
- Drills & pumps
- Saws & log splitters
- Cranes & Hoists
- Handheld drills
- Grinders & welders
- Agricultural equipment
- Generators
- 3 phase Vacuums & floor grinders. etc
- Event and temporary cabling e.g.
- fairgrounds
- sporting venues
- Stage & theatre power.
The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact they are resistant to abrasion, exposure to radiated heat and chemical contamination. Because of the black, flame retardant sheath, it is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.
This extension lead recommended for applications where the cord is continually dragged behind a machine, e.g., floor polishers, floor grinders, etc.
Maximum Ambient temperature: 40°C
Maximum Continuous Length: 100m
Maximum current at 40°C: 10A
Cable Specifications:
Cable CSA:4mm²
Max Voltage: 06/1kV
Insulation: Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
Sheath Colour: Black - UV, sunlight and weather resistant.
Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)
Maximum permissible short circuit temperature: 250 deg C for 1 Sec
