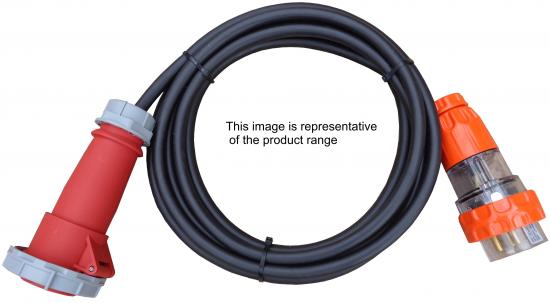

32A Australian Plug to 32A European Reefer Socket

3 Phase "Reefer" Container Extension Lead

415V, 32 Amp, four pins.

Length: 15M

Australian 4 Pin 32A plug to 4 Pin 32A Reefer Container Extension Socket. The European "Reefer" plugs are unique and incompatible with the typical European standard 32A fittings. The Reefer plugs earth pin is located at 3 o'clock, while the earth pin for the usual European standard fittings is at 6 o'clock.

The leads can be tested and tagged ready for use before dispatch.

The quarterly colour-coded tags.

RED = Dec – Feb

GREEN = Mar-May

BLUE = Jun – Aug

YELLOW = Sep – Nov

Cable  Specifications:

Cable CSA:6mm²

Maximum current at 40°C: 32A

Max Voltage: 06/1kV

Insulation: Ethelyne-propylene rubber (EPR) R-EP-90   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Cable Temperature Range: -25 degrees C to +90 degrees C (mobile) -40 degrees c to +90 degrees C (fixed)

Maximum permissible short circuit temperature: 250 deg C for 1 Sec
