  •  20 Amp, 240V 10m Single Phase  Extension Lead PVC Insulated

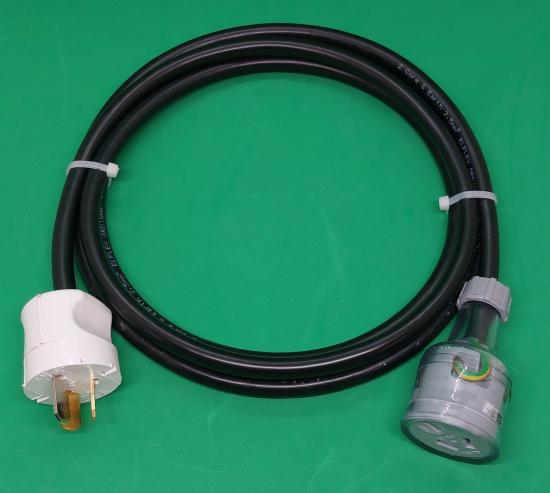

20 Amp, 240V 10m Single Phase  Extension Lead PVC Insulated


  • $150.00

  • Ex Tax: $136.36

Available Options

20 Amp, 240V

3 Flat Pin.

Australian Standard

Single Phase  Extension Lead

Cord Length: 10m


The light 20A PVC insulated extension lead is suitable for indoor use and short duration outdoor use.

These light duty extension leads are recommended for indoor use or for outdoor
applications where the ambient temperature is below 40°C.

For extended use outdoors or harsh environments with higher ambient temperatures use the rubber insulated
extension leads.

(Intermittent use: Ambient temperature above 40°C below 45°C)

The maximum length for general use: 30m



Ideal for use with coffee machines.


Not recommended for use in a factory or harsh environments.

(Intermittent use: Ambient temperature above 40°C below 45°C)

Maximum Ambient temperature: 40°C

Maximum Continuous Length:  30m (with a 3% voltage drop)

Maximum current at 40°C: 20A

Cable  Specifications:

Cable CSA:2.5mm²

Max Voltage: 06/1kV

Insulation: PVC   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Maximum permissible short circuit temperature: 250 deg C for 1 Sec
