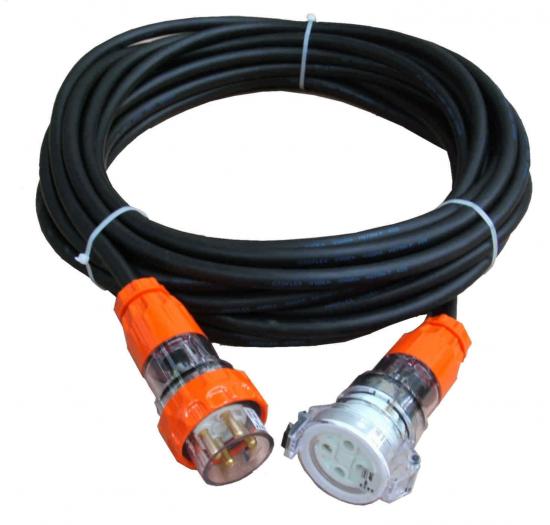

40 Amp 05m Light Duty Industrial Extension Lead: 3 Phase,4 pin,415V with Test & Tag Option

40A 4 Pin 3 Phase

Australian Standard

Light Duty Extension Lead

Length: 5 m

Australian Standard 3 phase extension leads.

These light duty extension leads are recommended for indoor use or for short duration outdoor applications where the ambient temperature is below 40°C.

For extended use outdoors or in environments with high ambient temperatures use the Heavy extension leads.

(Intermittent use: Ambient temperature above 40°C )

Maximum Continuous Length for general use: 30m

The maximum length for use with any equipment that has a high starting current:15m

The leads have the option of being tested and tagged ready for use before dispatch.

The quarterly colour-coded tags.

RED = Dec – Feb

GREEN = Mar-May

BLUE = Jun – Aug

YELLOW = Sep – Nov

Applications:

• Wet and oily environments
• Construction site leads
• Submersible Pumps
• Flexible connections to motors, generators, compressors e.g.
  • Drills & pumps
  • Saws & log splitters
  • Cranes & Hoists
  • Handheld drills
  • Grinders & welders
  • Agricultural equipment
  •  Generators
  • Three phase Vacuums & floor grinders. etc

• Event and temporary cabling e.g.
  • fairgrounds
  • sporting venues
  • Stage & theatre power.

The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact they are resistant to abrasion, exposure to radiated heat and chemical contamination. Because of the black, flame retardant sheath, it is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.

Cable  Specifications:

Cable CSA:6mm²

Max Voltage: 06/1kV

Insulation: Ethylene-propylene rubber (EPR) R-EP-90   90 deg C Conductor

Sheath Colour: Black - UV, sunlight and weather resistant.

Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)

Maximum permissible short-circuit temperature: 250 deg C for 1 Sec

Please select carefully the four (4) pin extension leads have the highest rate of return due to incorrect selection. The main reason is that a five (5) pin lead is required.

If you are not sure, please send us pictures of your plug and sockets or contact us for assistance

Price also includes postage insurance. If the courier delays the item delivery, please allow 48 hours from the time we are advised of the late delivery to investigate with the couriers. If the courier loses the item, we will send a replacement.

Extension Leads Made by:

EEC Technical Services Pty Ltd

Registered Electrical Contractors

VIC REC: 17796     ABN:39101655734

EEC is an online mail order store, and customer pickup is not available.

EEC reserves the right to substitute the cable for cable of equal quality and specifications.
