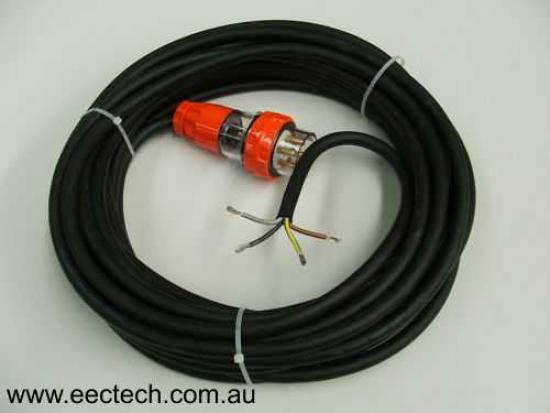

20 Amp 2.5m Appliance Lead: 3 Phase,4 pin,415V
- Brand: EEC Technical Services
- Product Code: 20 Amp 4 Pin Industrial Appliance Lead
- 6 Available
- Ex Tax: $65.45
20A 4 Pin 3 Phase
with Australian Standard Plug
Length: 2.5 m
Appliance Leads for replacement of damaged leads on portable appliances like polishers, vacuums, pumps saws etc.
Angle Plugs are available. If required, please leave a message at check out.
- Wet and oily environments
- Construction site leads
- Submersible Pumps
- Flexible connections to motors, generators, compressors e.g.
- Drills & pumps
- Saws & log splitters
- Cranes & Hoists
- Handheld drills
- Grinders & welders
- Agricultural equipment
- 3 phase Vacuums & floor grinders. etc
- Event and temporary cabling e.g.
- sporting venues
- Stage & theatre power.
The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact they are resistant to abrasion, exposure to radiated heat and chemical contamination. Because of the black, flame retardant sheath, it is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.
It is that recommended for applications where the lead is continually dragged behind a machine, e.g. floor polishers, floor grinders etc. the heavy duty leads be used.
Maximum Ambient temperature: 40°C
Maximum Continuous Length: 38m (with a 3% voltage drop)
Maximum current at 40°C: 10A
Max Voltage: 06/1kV
Insulation: Ethelyne-propylene rubber (EPR) R-EP-90 90 deg C Conductor
Sheath Colour: Black - UV, sunlight and weather resistant.
Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)
Maximum permissible short-circuit temperature: 250 deg C for 1 Sec
Extension Leads Made by:
EEC Technical Services Pty Ltd
Registered Electrical Contractors
VIC REC: 17796 ABN:39101655734
